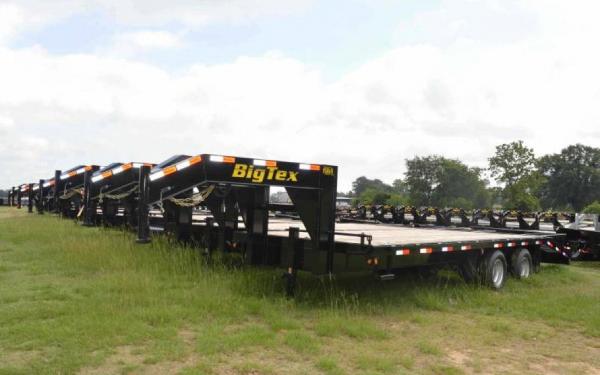

Big Tex 20+5 Tandem Axle Gooseneck
Call for Quote
(870) 346-5169Sage, AR
The 20GN from Big Tex Trailers is our economy-style tandem dual gooseneck trailer. This durable and rugged trailer combines several great Big Tex characteristics, including LED lights, treated floor and an adjustable coupler-all at a price you can afford.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 20+5 Tandem Axle Gooseneck
20GN-20+5
Specs:
- 10,000lb G.A.W.R. (Ea. Axle)
- 2-5/16" Ball Adj. Pipe Type
- 3/8" Grd.70 Safety Chains w/Safety Latch Hook (2 each)
- 12K Drop Leg Jacks (Bolted On)
- 12" I-Beam Neck
- 12" I-Beam Frame
- 3" Channel Crossmembers
- 5" Channel w/Rub Rail, Stake Pockets on 24" Centers
- Two 10,000lb Dual Wheel Axles w/Electric Brakes
- Multi-Leaf Slipper Spring w/Equalizer Suspension
- ST235/80-16 Load Range E Dual Tire
- 16 x 6 Dual 8 Bolt Wheel
- 2" Pine Floor
- LED D.O.T. Stop, Tail, Turn & Clearance Lights
- 7-Way RV Electrical Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- 12K Drop Leg Jack
- Bolt On Jack w/ Greasable Handle
- Low Profile Bed, Pierced Frame
- 102" Overall Width
- 3/8" Heavy Duty Rub Rail
- Safety Reflective Marker Tape
- Oil Bath Axles w/ Electric Breaks on each
- Complete Break-A-Way System w/Battery & Charger
- Spare Tire Mount
- 5' Dovetail w/Double Hinged Fold Over Ramps
- Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 14750 lbs.
- External Width:
- 102"
- External Length:
- 20'+5'
- Hitch Type:
- Gooseneck
- Category:
- Gooseneck/Pintle Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- N/A
- Color:
- Black
- GVWR:
- 20000
- Capacity:
- 14750
Features/Specifications
Features
| Axle | (2) 10,000# Dual Wheel Electric Brakes |
|---|---|
| Jack | Single 12,000# Drop Leg Jack (Bolted On) |
| Neck | 12" I-Beam, 14# |
| Tire | ST235/80 R-16 Load Range E DUAL |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam, 14# |
| Wheel | 16" x 6"; Dual Wheel 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Ball Adj. Pipe |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 20,000# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Gooseneck |
| Side Rails | 5" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 10,000# |
Specifications
Big Tex 20GN Economy Tandem Dual Wheel Gooseneck Trailer
| Model | Description |
|---|---|
| 20GN-20+5 | 102" x 20' + 5' Economy Tandem Dual Wheel Gooseneck |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240" | 186" | 54" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 5,250# | 14,750# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Adjustable Pipe Coupler
- 12,000# Drop Leg Jack (Bolted On) w/Greasable Handle
- 102" Overall Width
- Low Profile, Pierced-Beam Frame Design
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Oil Bath Hubs
- Premium Brand Axles
- Forward Self Adjusting Brakes
- L.E.D. Lighting Package
- Grommet Mount Sealed Lighting
- Sealed Modular Wiring harness
- Spare Tire Mount (Top of Neck)
- 5 Dovetail w/5 Double Hinged Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel - Standard Equipped
