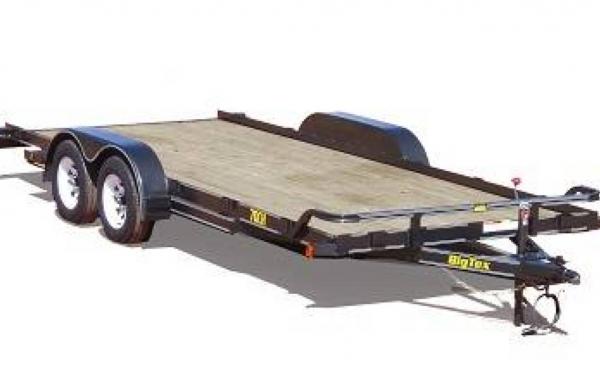

Big Tex 83"x16' Tandem Axle Auto Hauler
Call for Quote
(870) 346-5169Sage, AR
The 70CH Tandem Axle Car Hauler from Big Tex Trailers is built to work tough and look great doing it with a fold-back tongue and teardrop fenders. This versatile trailer can be used for autos, small tractors, ATVs, side-by-sides, and numerous other applications.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 83"x16' Tandem Axle Auto Hauler
70CH-16BK
Specs:
- G.A.W.R. (Ea. Axle) 3,500#
- Coupler 7K 2" Forged Coupler
- Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
- Jack 2K Top Wind (Bolted On)
- Tongue 4" Channel Fold Back Tongue
- Top Rail None
- Frame 5" x 3" x 5/16" Angle
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights None
- Fenders 9" x 72" Tear Drop w/Back (Bolted On)
- Axles Two 3,500# EZ Lube w/1 Elec. Brake
- Suspension Multi-Leaf Spring with Equalizer
- Tire ST205/75-15 Load Range C
- Wheel 15 x 5 White Spoke 5 Bolt
- Floor 2" Pine
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 7-Way RV
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Forged Coupler
- Safety Chains Attached w/Cold Rolled Eyelets
- Sand Foot on Jack
- Set Back Jack
- Lower Jack Support Plate
- Fold Back Tongue (14' and longer)
- 2" Tube Stop Rail
- Tie Down Pockets Sides & Front
- Floor Secured w/Torx Screws
- Cambered EZ Lube Axles w/1 Electric Brake
- Complete Break-A-Way System w/Charger
- Tear Drop Fenders
- Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 5240 lbs.
- External Width:
- 83"
- External Length:
- 16'
- Hitch Type:
- Bumper Pull
- Category:
- Car/Auto Haulers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- N/A
- Color:
- Black
- GVWR:
- 7000
- Capacity:
- 5240
Features/Specifications
Features
| Axle | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 5" x 3" x 5/16" Angle (1/4" on 16) |
| Wheel | 15" x 5"; Black Mod, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel Fold Back/Wrap Tongue |
| Coupler | Adjustable 7,000#, 2" Forged Coupler |
| Fenders | 9" x 72" Tear Drop w/ Back (Bolted On) |
| G.V.W.R. | 7,000# |
|---|---|
| Uprights | None |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 70CH Tandem Axle Car Hauler
| Model | Description |
|---|---|
| 70CH-14 | 83" x 14' Tandem Axle Car Hauler |
| 70CH-16 | 83" x 16' Tandem Axle Car Hauler |
| 70CH-18 | 83" x 18' Tandem Axle Car Hauler |
| 70CH-20 | 83" x 20' Tandem Axle Car Hauler |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' | 169-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138" | 102" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 1,610# | 5,390# | N/A |
| 16' | 1,760# | 5,240# | N/A |
| 18' | 1,910# | 5,090# | N/A |
| 20' | 2,060# | 4,940# | N/A |
Standard/Optional Equipment
Standard Equipment
- Stake Pockets Along Sides
- Adjustable, Forged 7,000# Coupler
- Fold Back/Wrap Tongue (14 & Longer)
- Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Fabricated Front Stop Rail
- Removable Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Dovetail in Existing Length (16, 18, 20 Only) |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | Additional Stake Pockets |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | 8,000# Drop-Leg Jack |
| RAMPS | 4 Slide-In Angle Ramps |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
