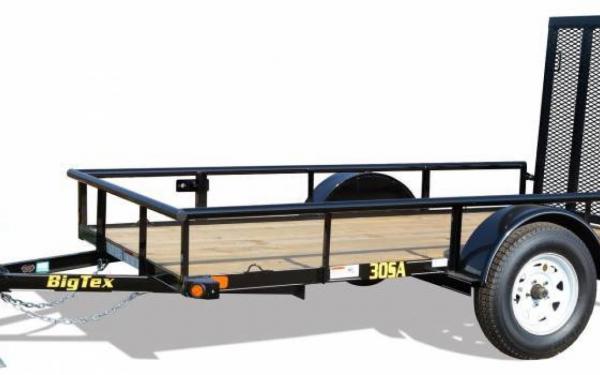

The 60"-wide 30SA Single Axle Utility Trailer from Big Tex is ideal for home and garden use. An angled frame and professional-grade finish provide the confidence for hauling large ATVs and zero-turn mowers with ease.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
10' Single Axle Trailer
30SA-10BK4RG
Specs:
*G.A.W.R. 2,995#
*Coupler 2" A-Frame
*Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
*Jack 2K Top Wind (Bolted On)
*Tongue 3" Channel
*Top Rail 30SA -- 2" Pipe/35SA -- 2-3/8" Pipe
*Frame 3" x 2" x 3/16" Angle
*Crossmembers 3" x 2" x 3/16" Angle
*Uprights 15" Tall -- 1/2" Angle (30SA) and 2" Angle (35SA)
*Fenders 9" x 32" Rolled Formed w/Back
*Axle 3,500# EZ Lube w/Brake Flanges
*Suspension Multi-Leaf Slipper Spring
*Tire ST205/75-15 Load Range C
*Wheel 15 x 5 White Spoke 5 Bolt
*Floor 2" Pine
*Lights LED D.O.T. Stop, Tail, Turn, & Clearance
*Elec. Plug 4-Way Flat w/Loom
*Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
*Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety chains attached w/Cold Rolled Eyelets
*Sand Foot on Jack
*Lower Jack Support Plate
*3,500# Idler EZ Lube Axle w/Flanges for Easy Brake Addition
*Pipe Top Rail
*4 Tie Down Loops
*EZ Lube Axle
*Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Single
- Max Payload:
- 2272 lbs.
- External Width:
- 60"
- External Length:
- 10'
- Hitch Type:
- Bumper Pull
- Category:
- ATV Trailers
- Year:
- 2016
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Ramp
- Color:
- BLACK
- GVWR:
- 2995
- Capacity:
- 2272
Features/Specifications
Features
| Axle | 3,500# Quick Lubricating Hub Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind, Set-Back Jack |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Wheel | 15" x 5; Black Spoke, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 15" Tall Angle, 1-1/2" Angle |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 30SA Single Axle Utility Trailer
| Model | Description |
|---|---|
| 30SA-08 | 60" x 08' Single Axle Utility Trailer |
| 30SA-10 | 60" x 10' Single Axle Utility Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 8' | 97-1/2" | 61" | 36-1/2" |
| 10' | 121-1/2" | 73" | 48-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 8' | 663# | 2,332# | N/A |
| 10' | 723# | 2,272# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Set Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Durable Pipe Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
Optional Equipment
| Category | Description |
|---|---|
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Car Hauler Style (No Side Rails) |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal (Per Square Foot) |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pockets |
| COUPLERS | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire and Wheel (ST205/75R-15 LR-C) |
